Suited for semi-public and public use

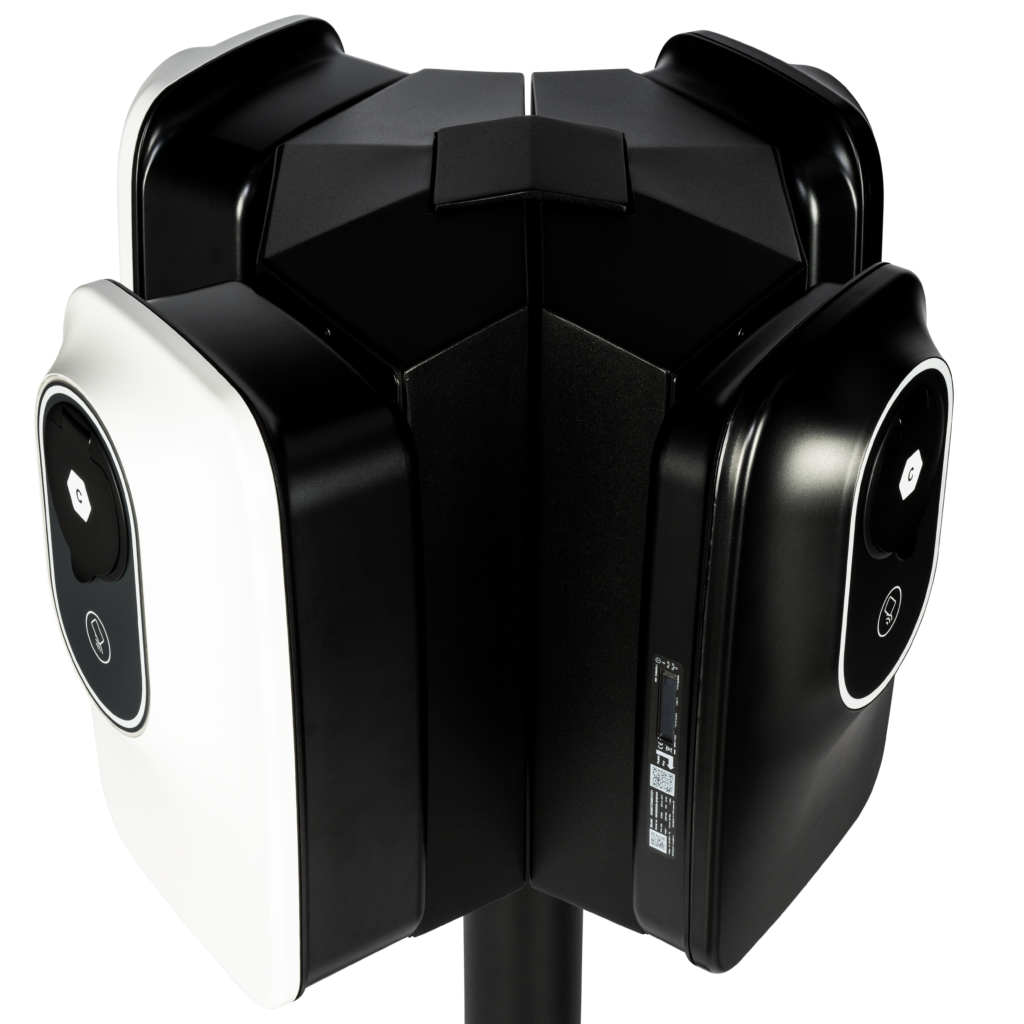

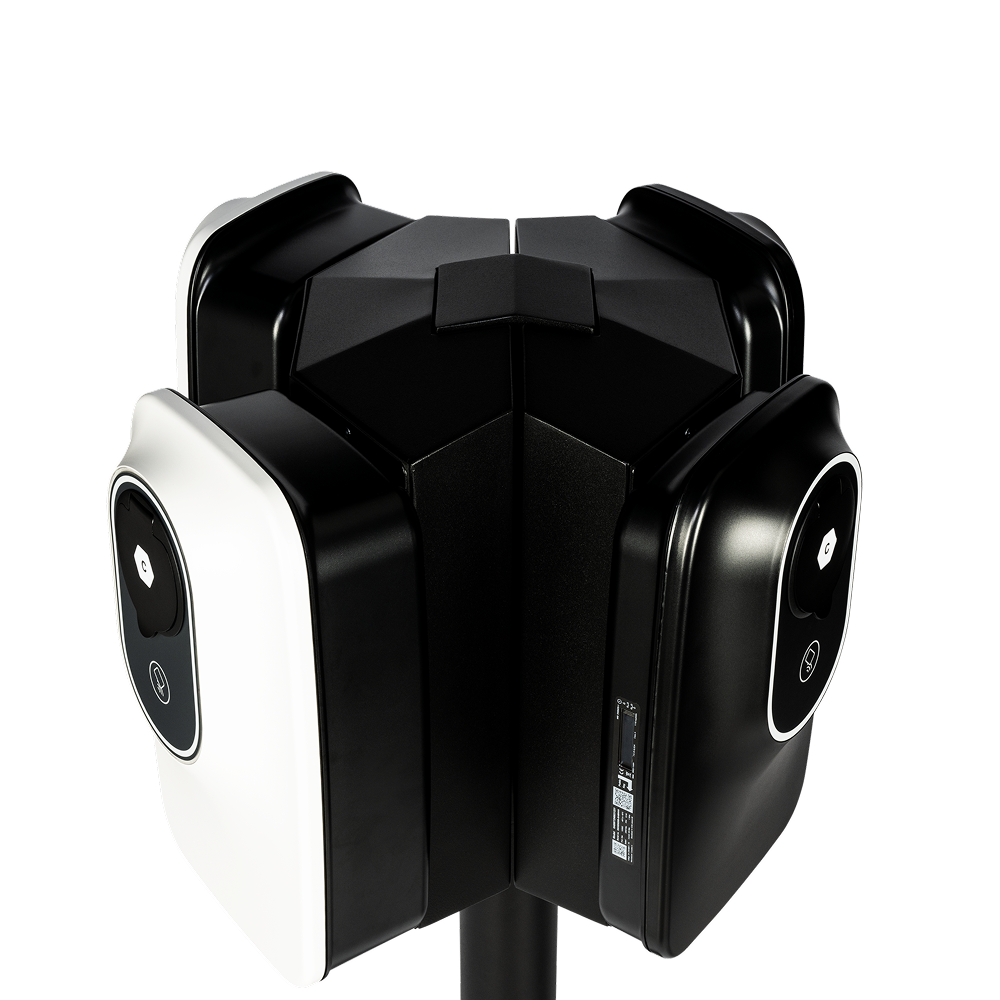

ENO duomount
Two ENO one charge points on a single footprint. The ENO duomount is a robust, premium-quality steel enclosure with powder coating and an anti-graffiti layer, purpose-built to deploy the ENO one series faster and at a lower total cost of ownership.
Pre-wired and quick to install, it mounts on a wall, on the floor or back-to-back on a pole, single or double-sided. An optional Payter Apollo payment terminal and a daisychain option make it ready for public and semi-public sites.
Developed and built in-house at Enovates Group in Lokeren, drawing on 15+ years of experience in electric charging.
Product brief
Two ENO one charge points in one pre-wired, easy-to-install solution.
Flexible mounting: wall, floor or back-to-back, single or double-sided on a pole.
Robust steel enclosure with powder coating and anti-graffiti layer, IK10 and IP54 rated.
Optional Payter Apollo payment terminal for public and semi-public deployment.
Lower TCO and efficient stock management, with a daisychain option for expansion.
Specifications
Compatible with
ENO one series
Mounting
Wall or single/double-sided
on a pole (back-to-back)
Enclosure
Steel S235JR 1.5 mm
powder coating + anti-graffiti layer
RAL 9005 (black)
Protection
IP54 & IK10
Operating range -25 to 55 °C
Electrical
1×230 V+N / 3×400 V+N / 3×230 V (50 Hz)
63 A | wiring up to 16 mm²

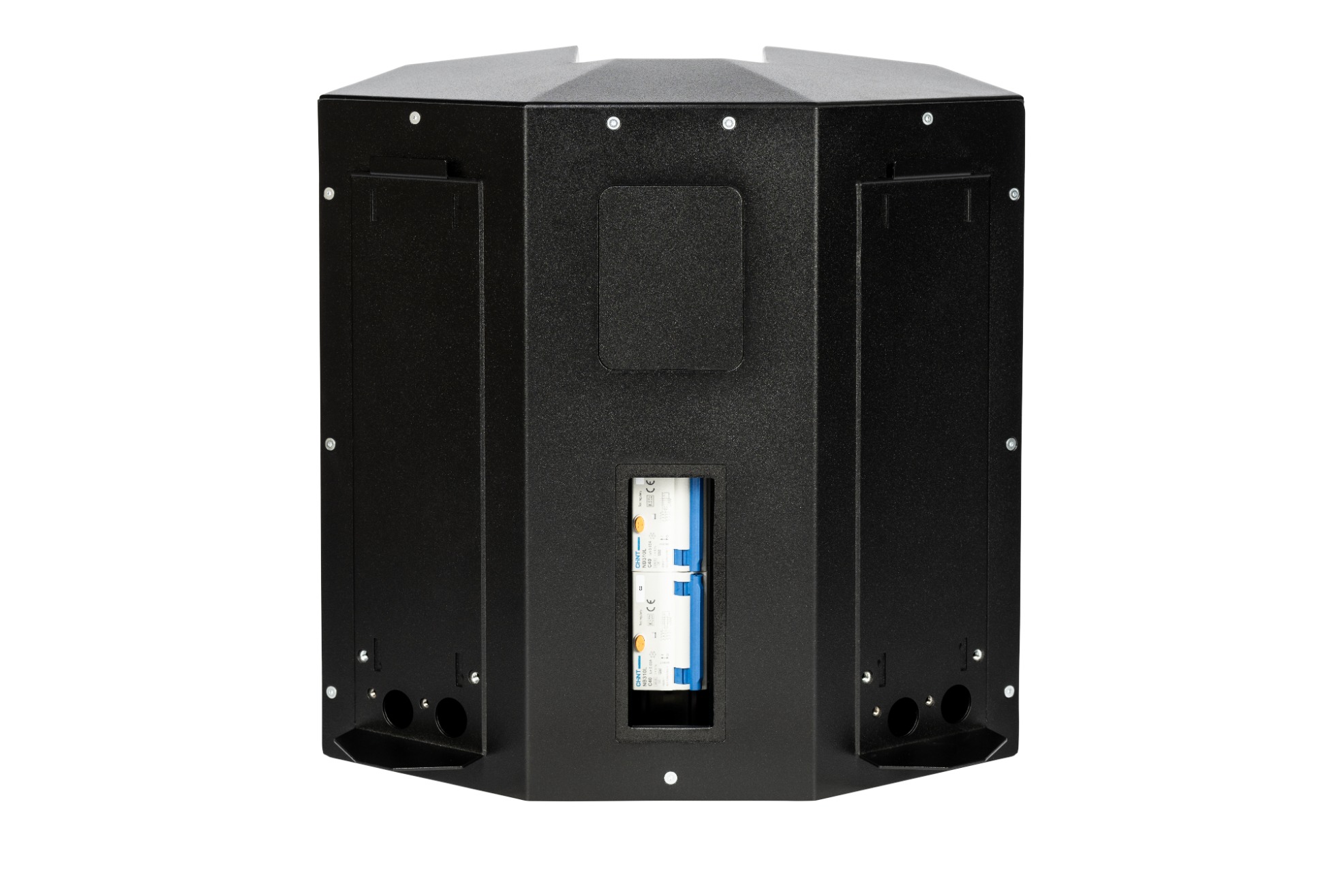

Integrated protection
2× C40 RCBO type A 30 mA
C6 MCB (payment terminal)
Optional surge protection
Options
Payter Apollo payment terminal
Daisychain
Standards
IEC 61439-3:2024
REACH (EC 1907/2006)
RoHS2 (2011/65/EU
Highlights
- Smart design
- Designed and built in-house
- Customisable, scalable and sustainably engineered
- Innovation backed by over 16 years of experience in EV-charging
- In-house technology and know-how for professionals and resellers

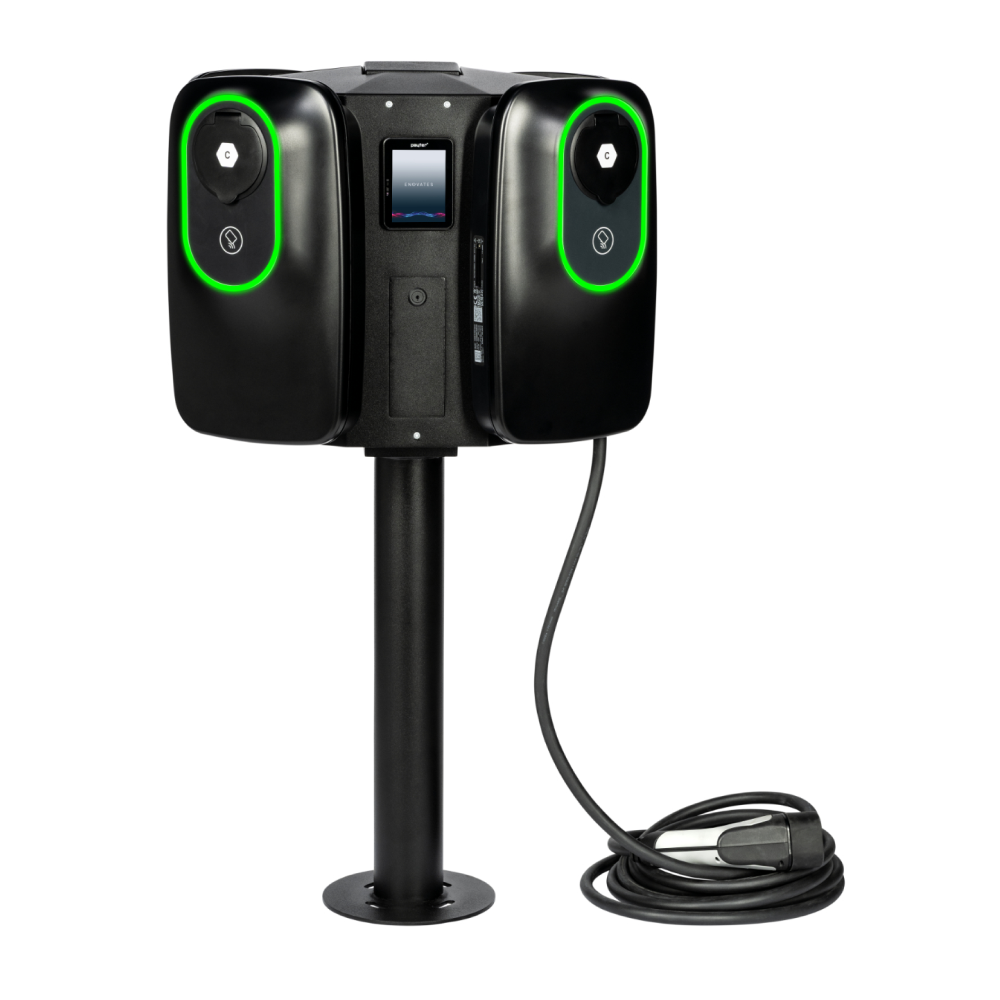

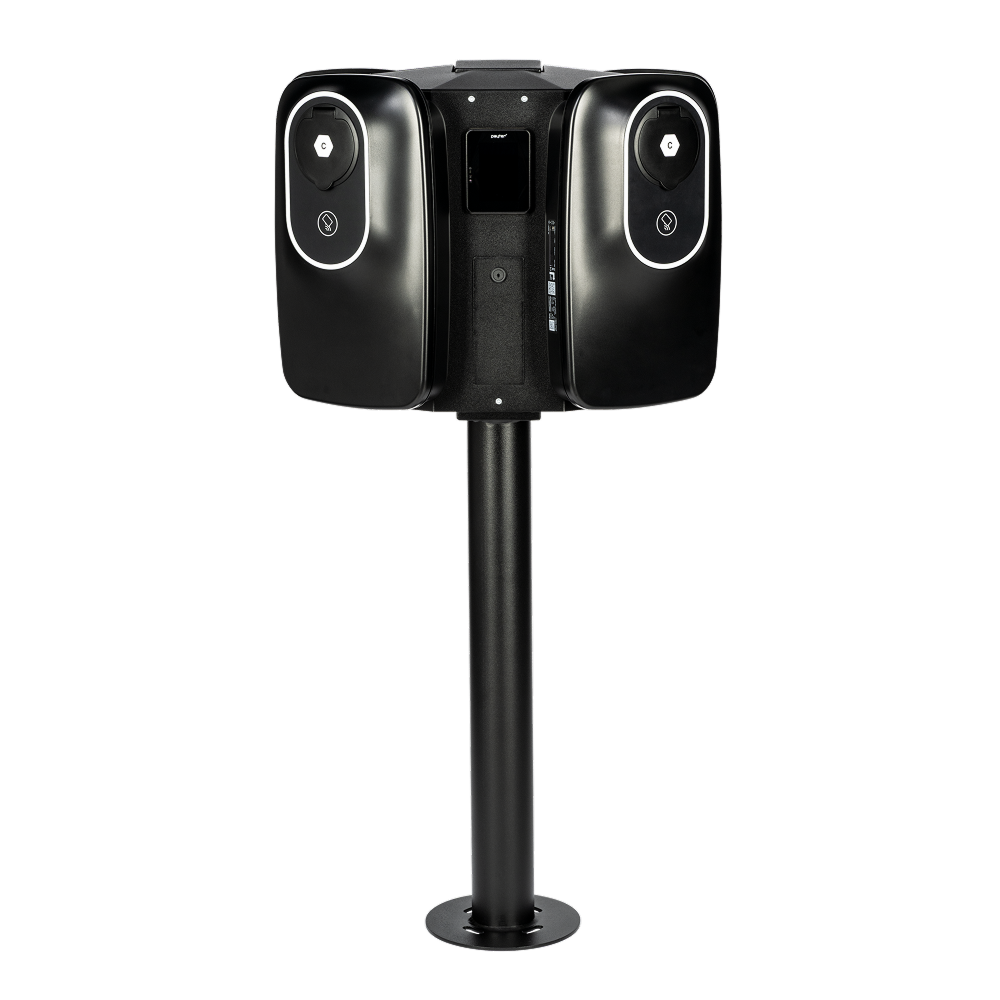

Flexible mounting
Wall, floor or back-to-back — one enclosure, every layout.

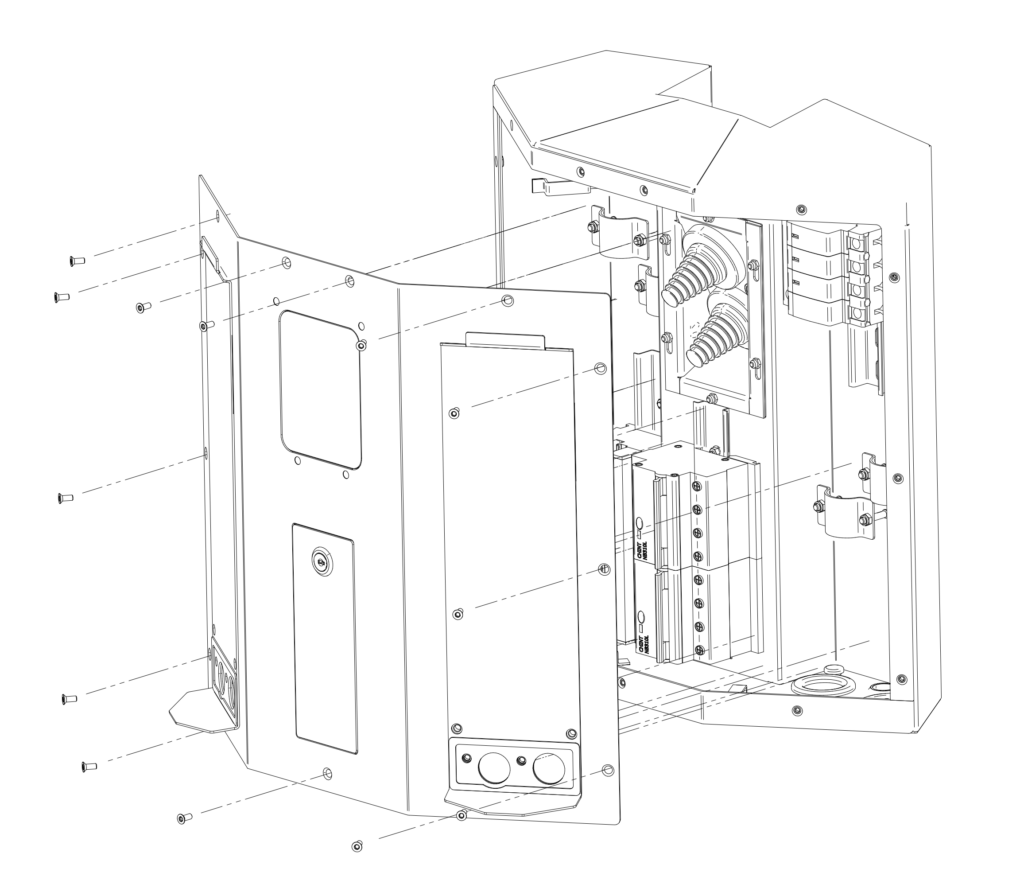

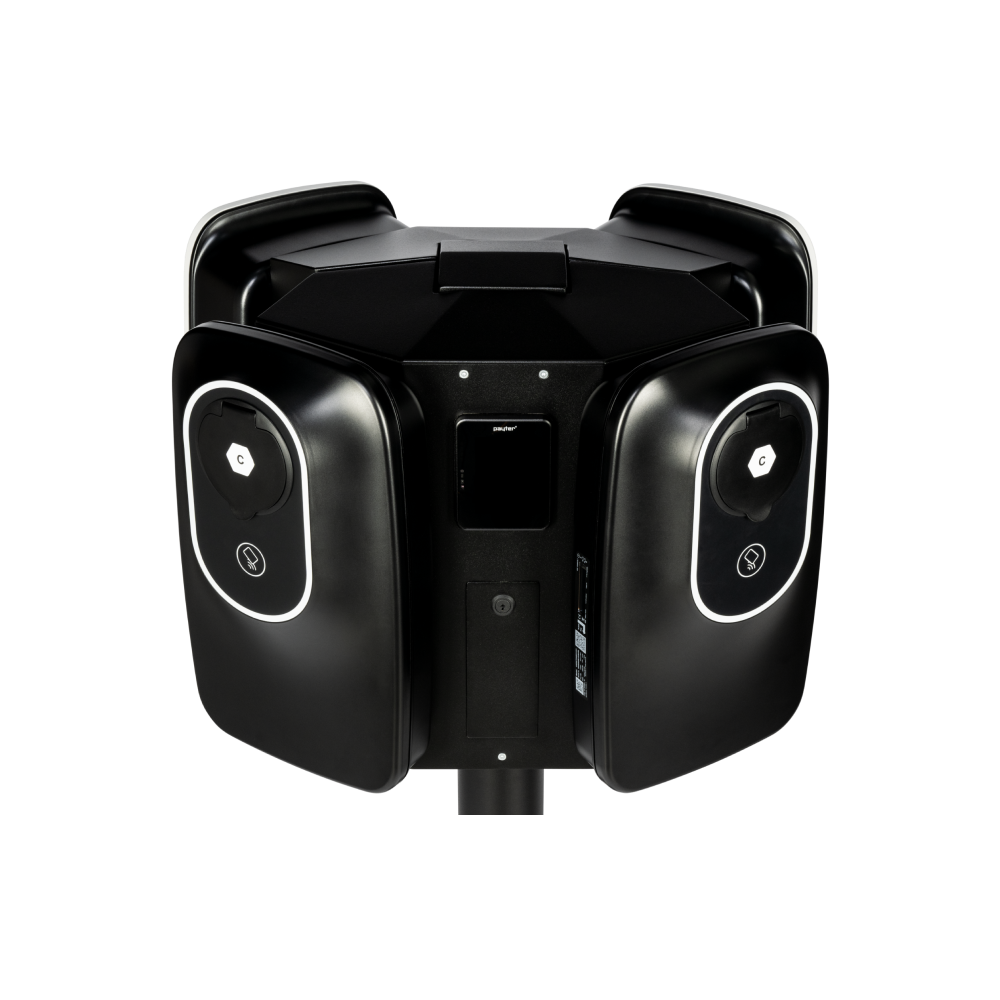

The ENO duomount carries two ENO one chargers on a single pre-wired assembly. Fit it against a wall, on the floor or back-to-back on a pole, single or double-sided, to match any site layout. Pre-wiring and easy operator access keep installation and maintenance fast, cutting deployment time and total cost of ownership per charge point.

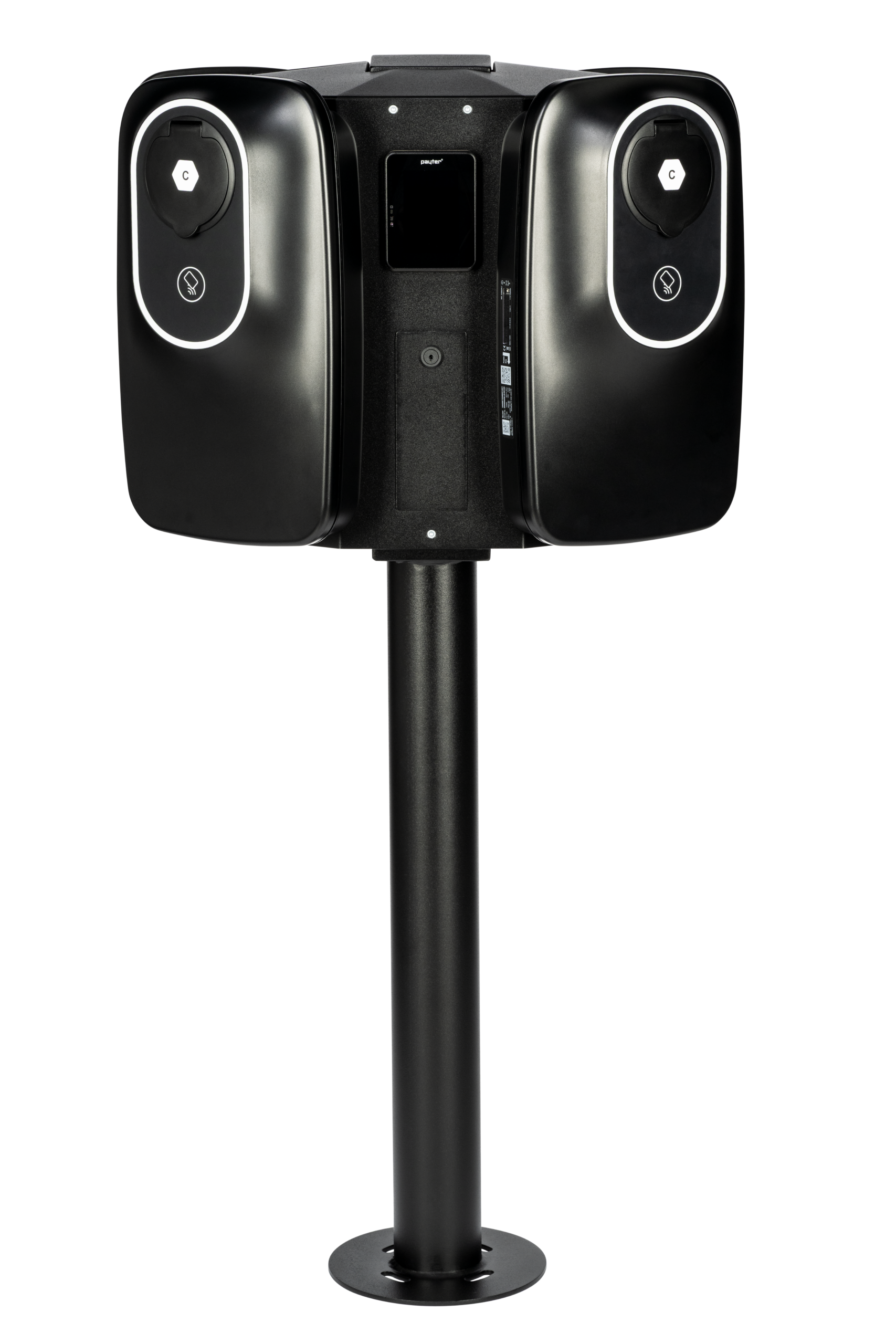

Pole options
The duomount pole ships as a separate item in two versions:
- Paal ENO duomount — 1201 × 220 mm — SKU 200000050
- Paal ENO duomount (PAS-1899 compliant) — 1051 × 220 mm — SKU 200000049
Both in steel S235JR with a zinc primer and a matt, fine-structure anti-graffiti topcoat, RAL 9005.
Optional payment terminal

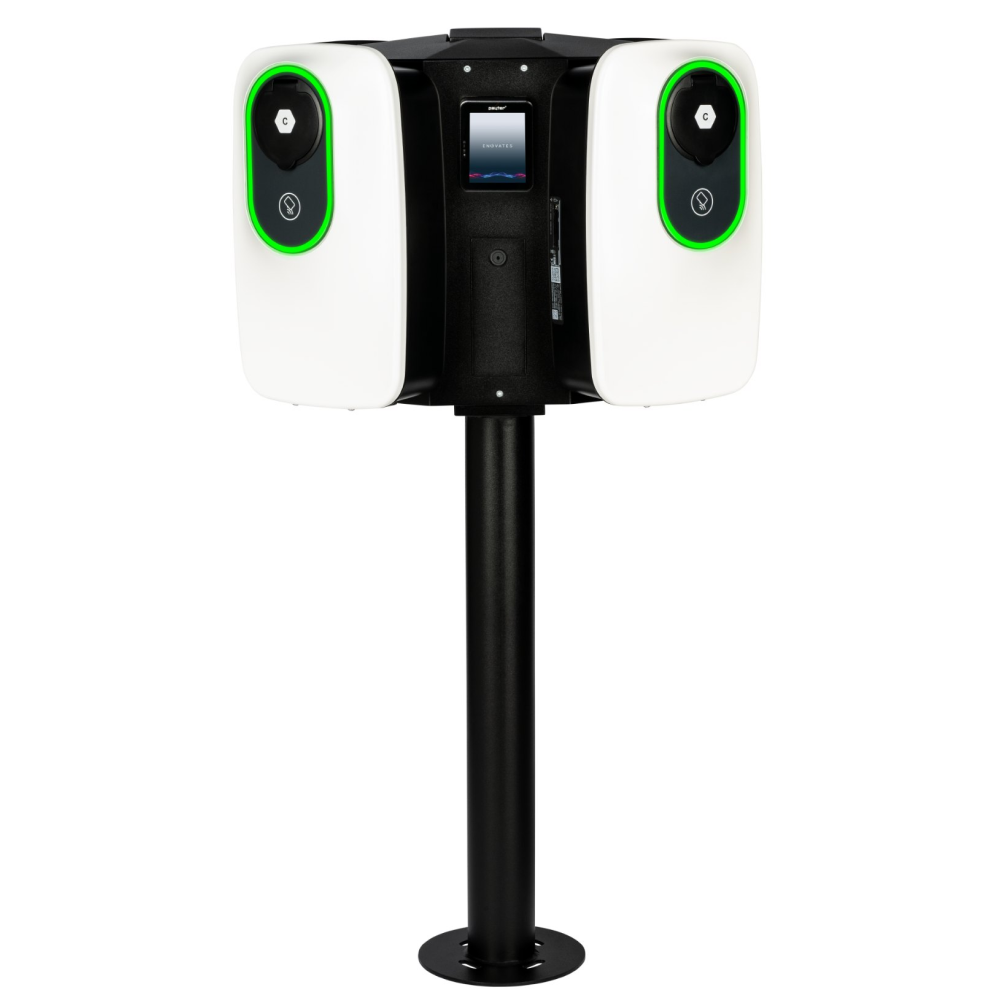

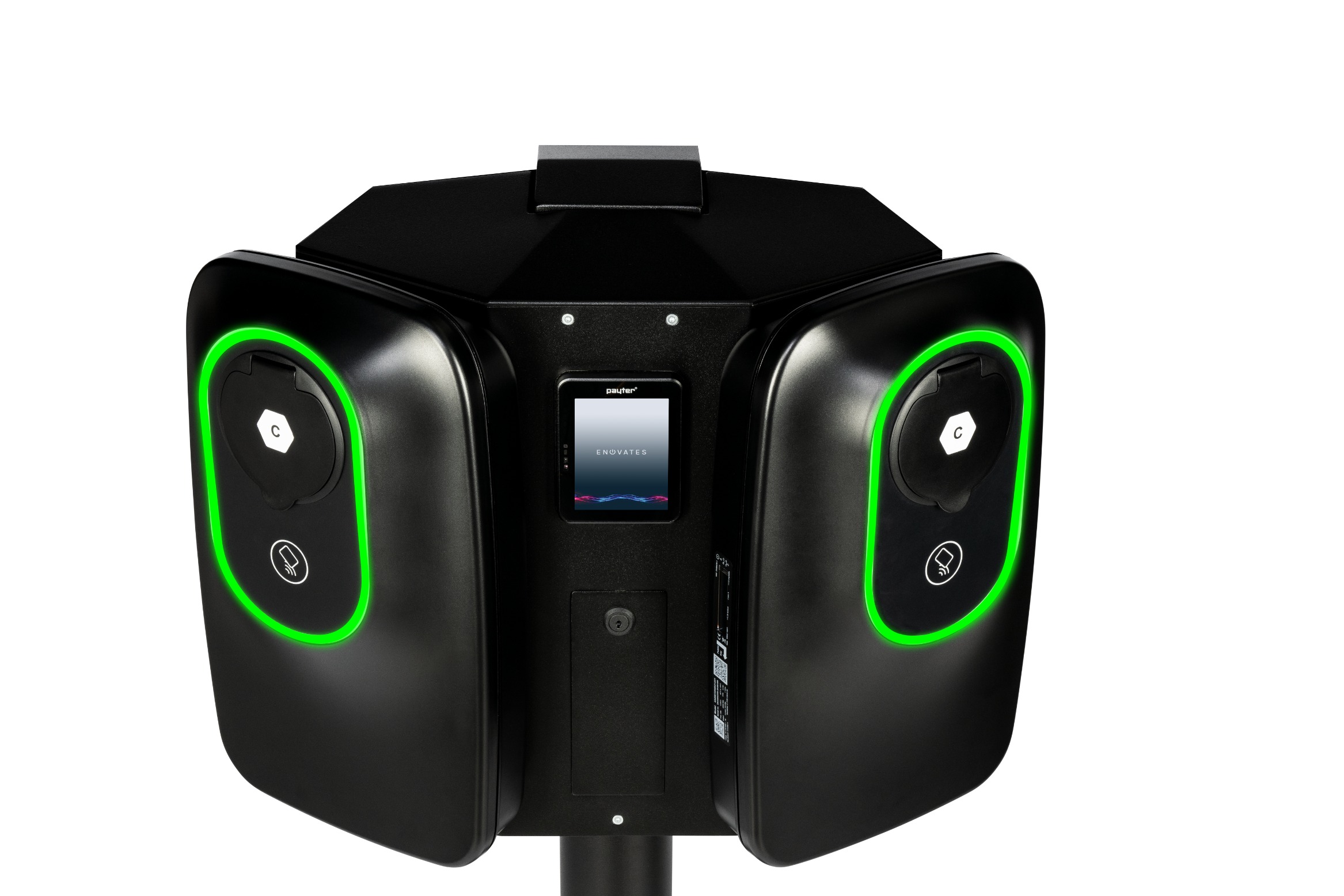

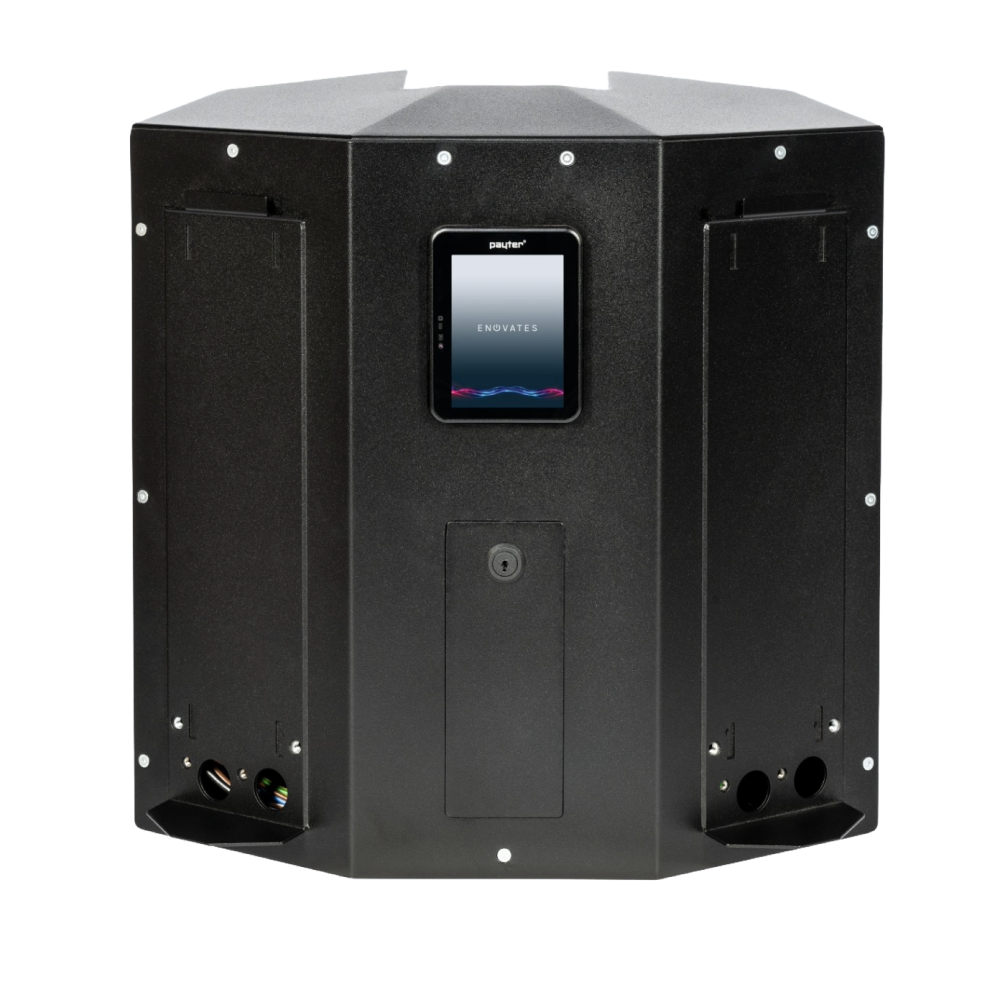

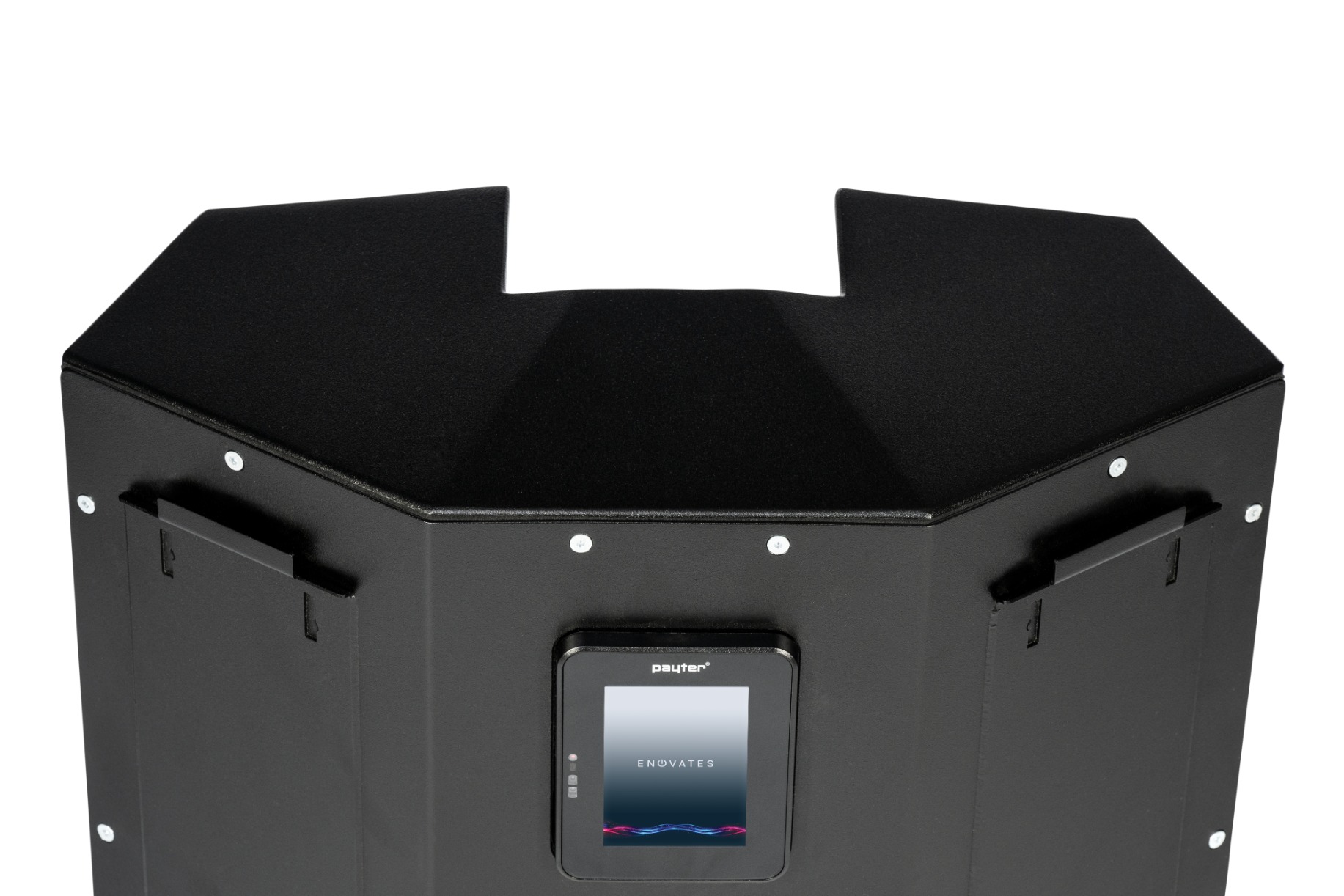

The ENO duomount is available with an integrated Payter Apollo payment terminal, enabling contactless ad hoc payment for public and semi-public locations. A dedicated C6 MCB protects the terminal circuit.
Available accessoires
Available hardware includes load balancing and smart charging modules.
Not sure which one you need? We’ll happily assist you.

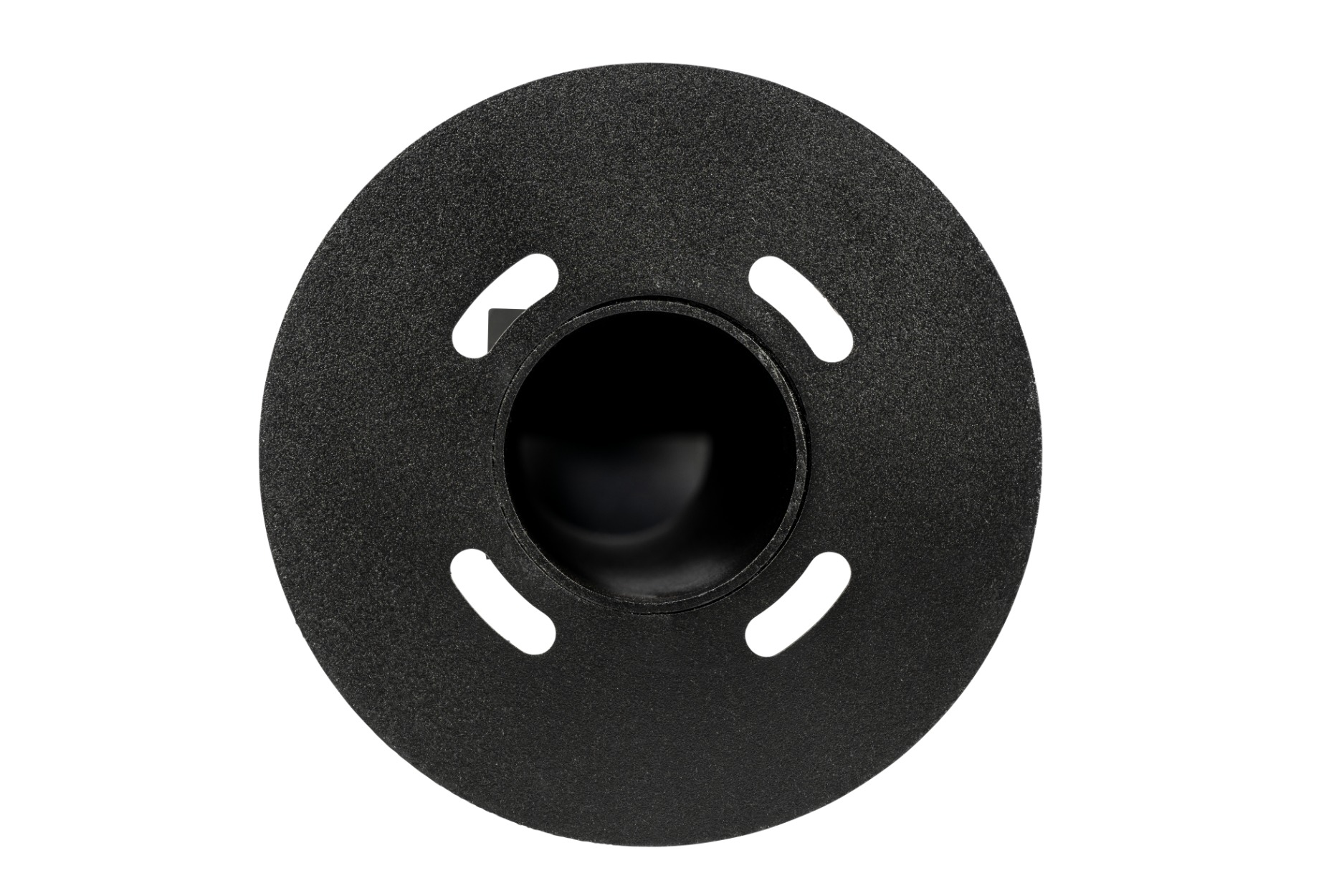

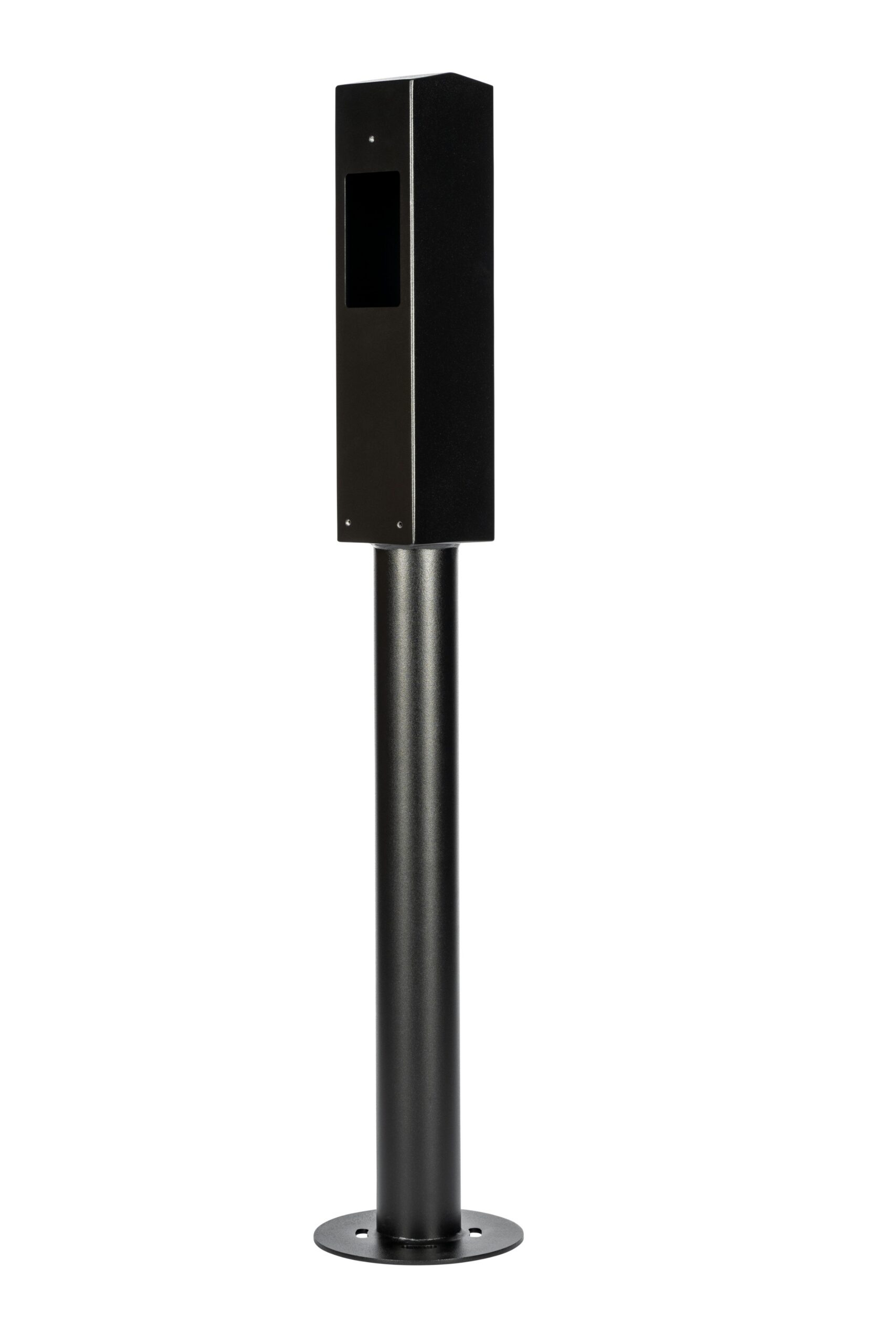

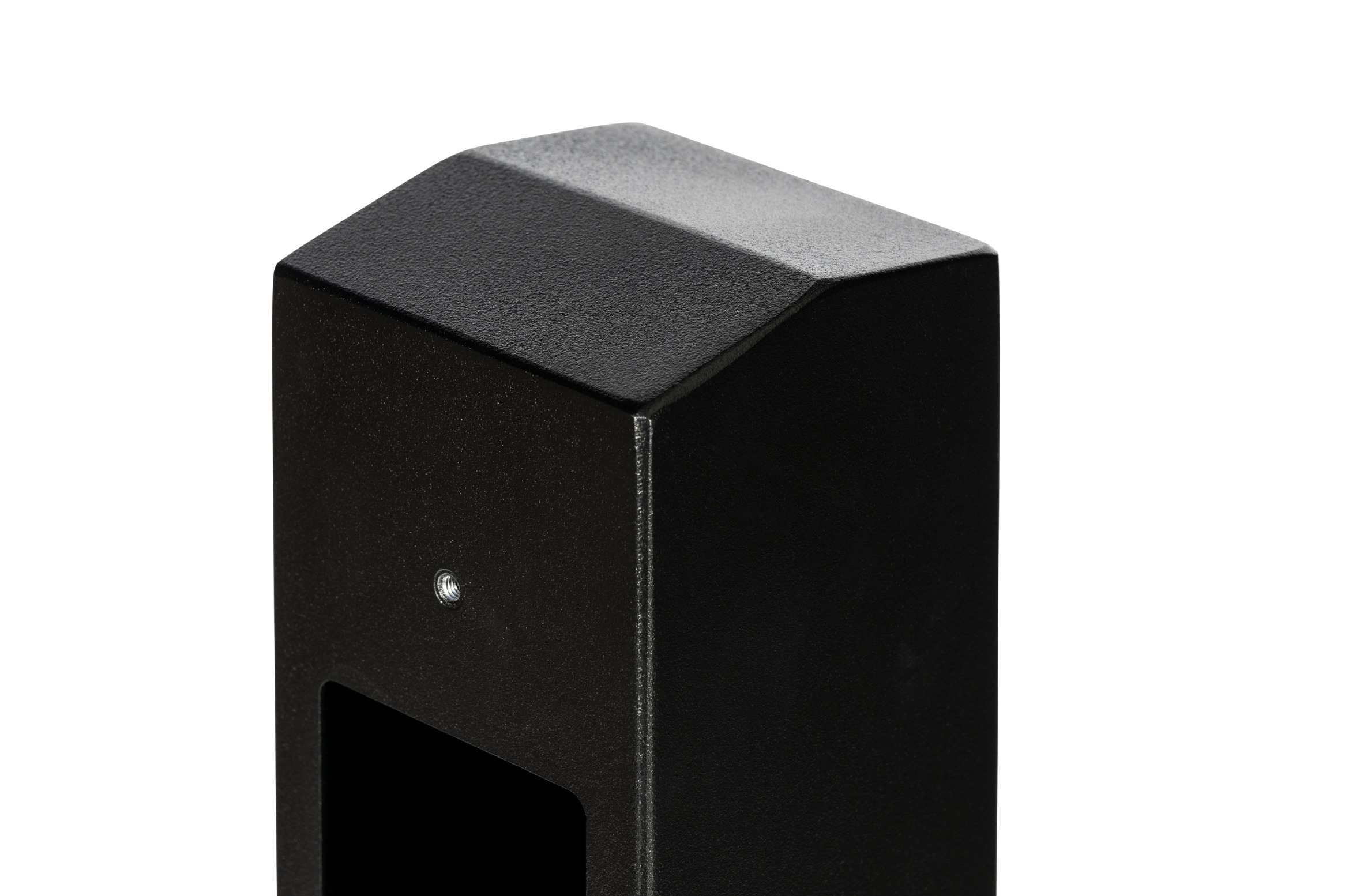

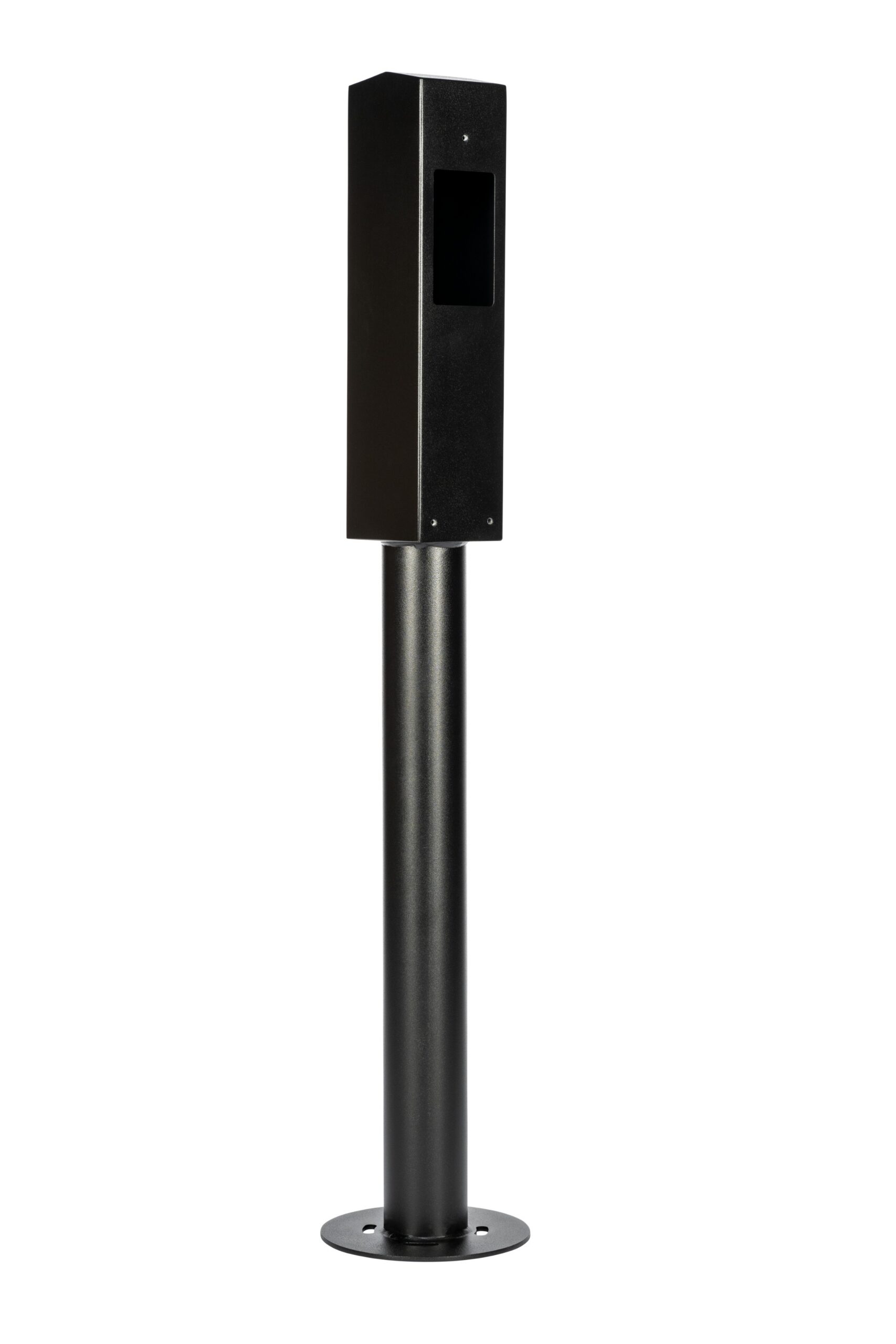

Pole ENO duomount | EU market
Dimensions
1201 mm x 220 mm

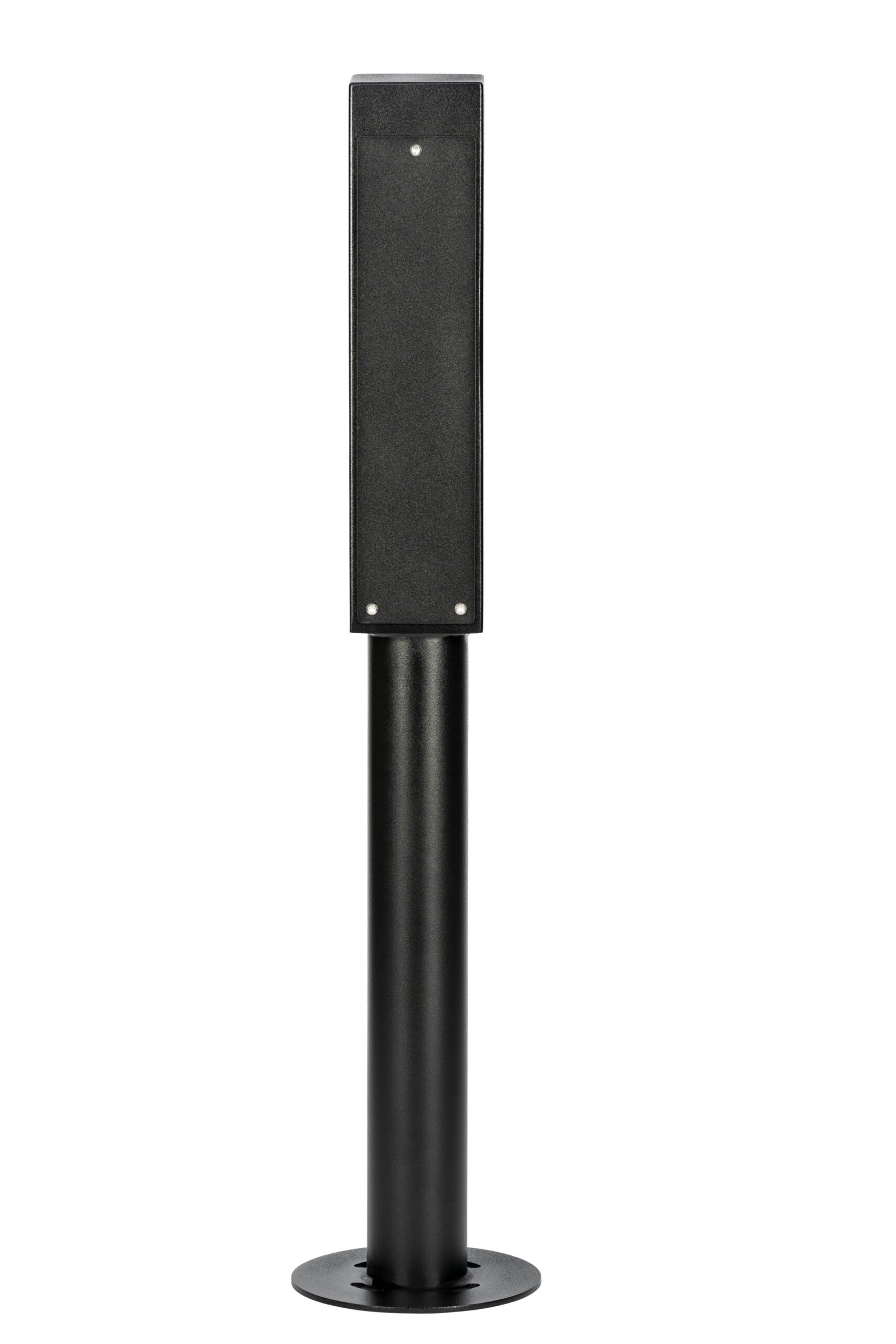

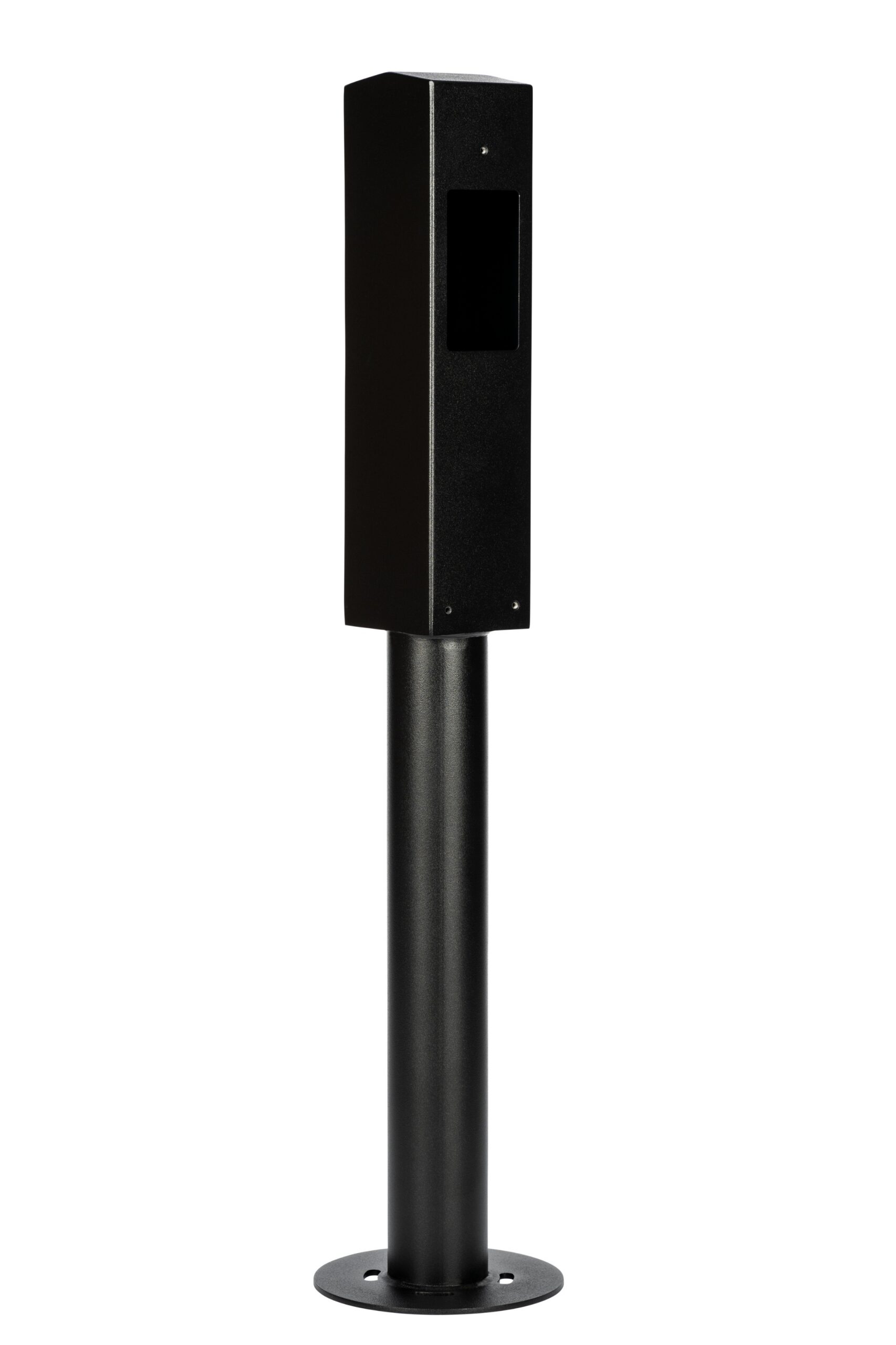

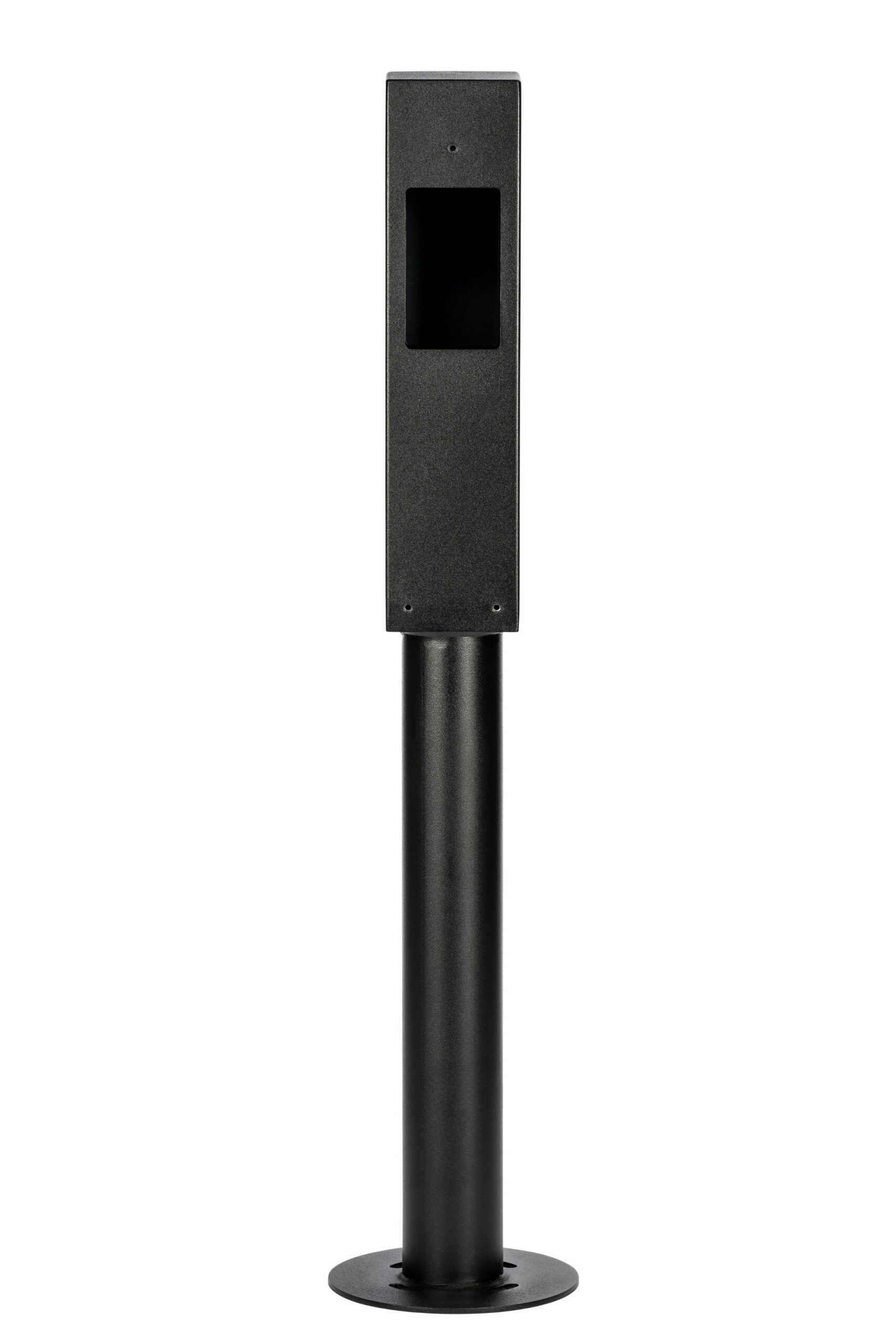

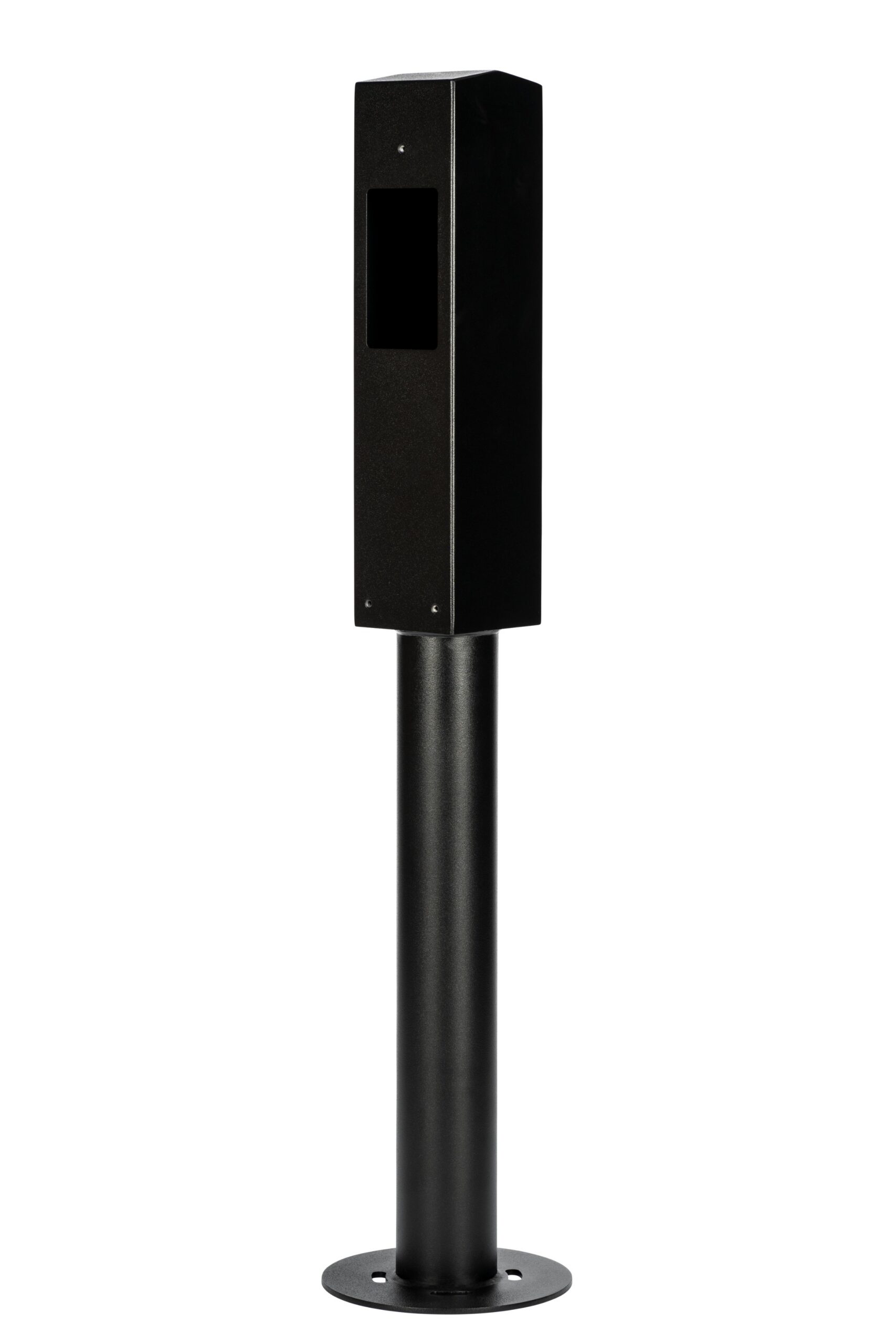

Pole ENO duomount PAS-1899 compliant | UK market
Dimensions
1051 mm x 220 mm

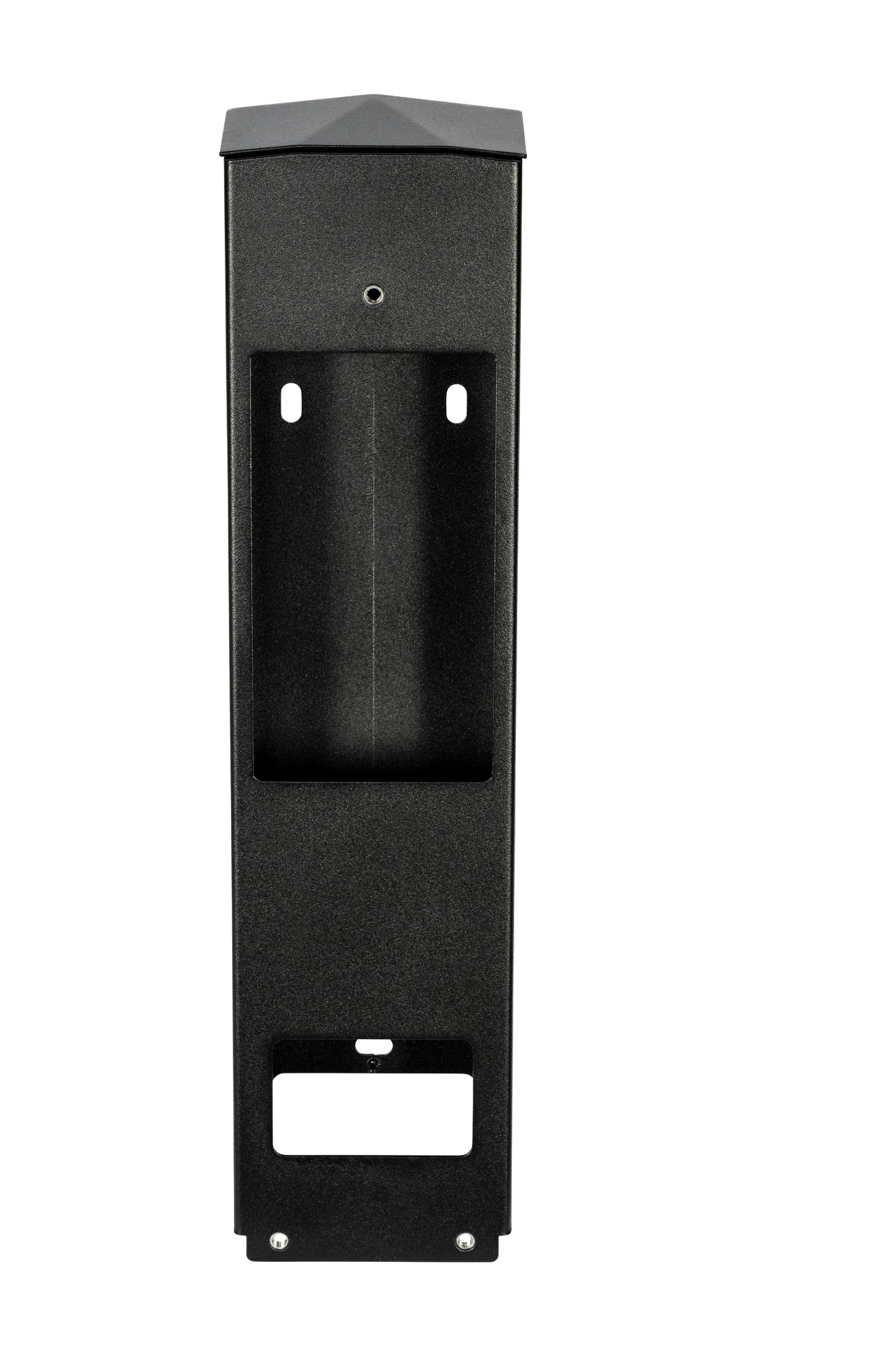

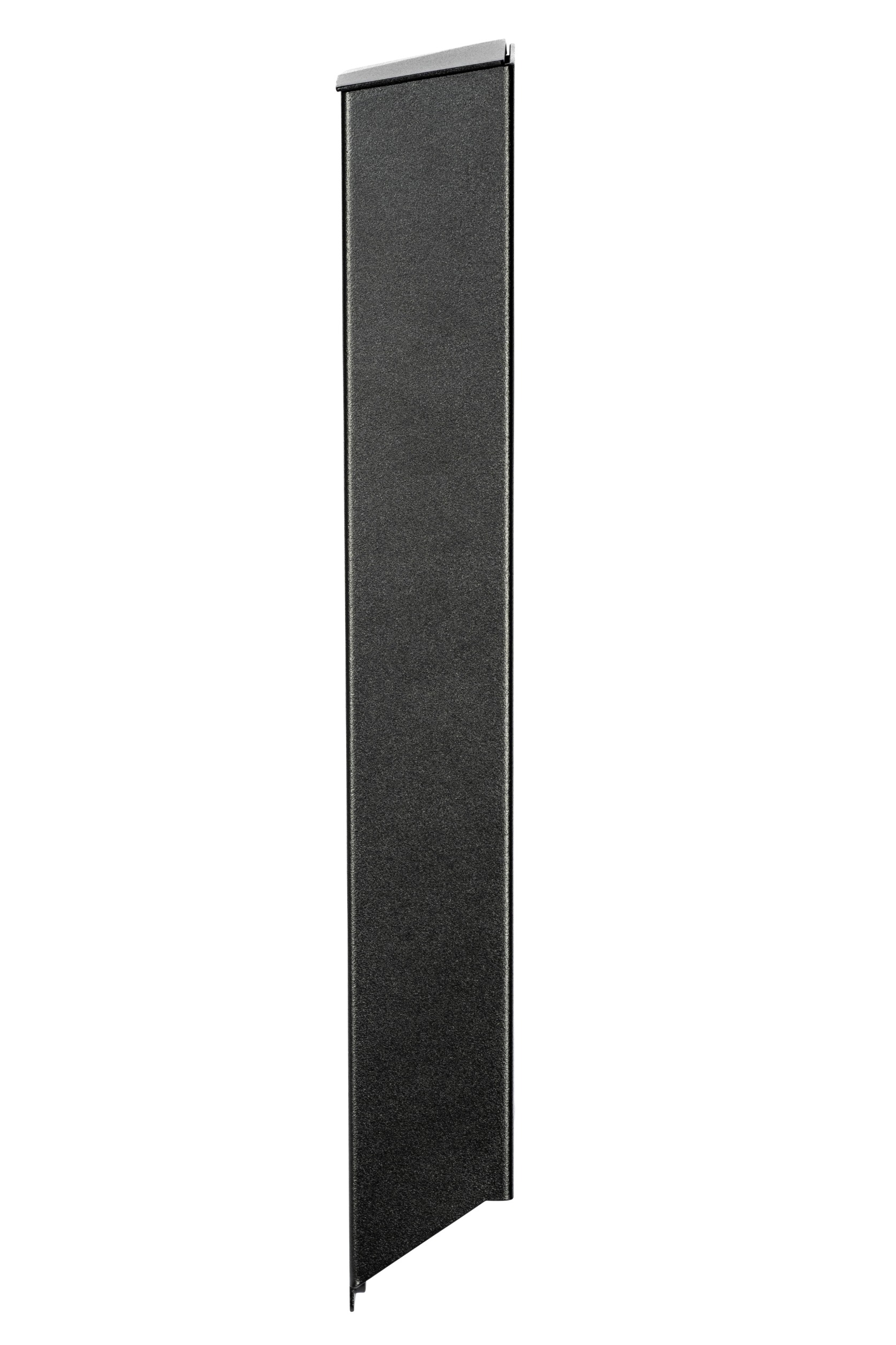

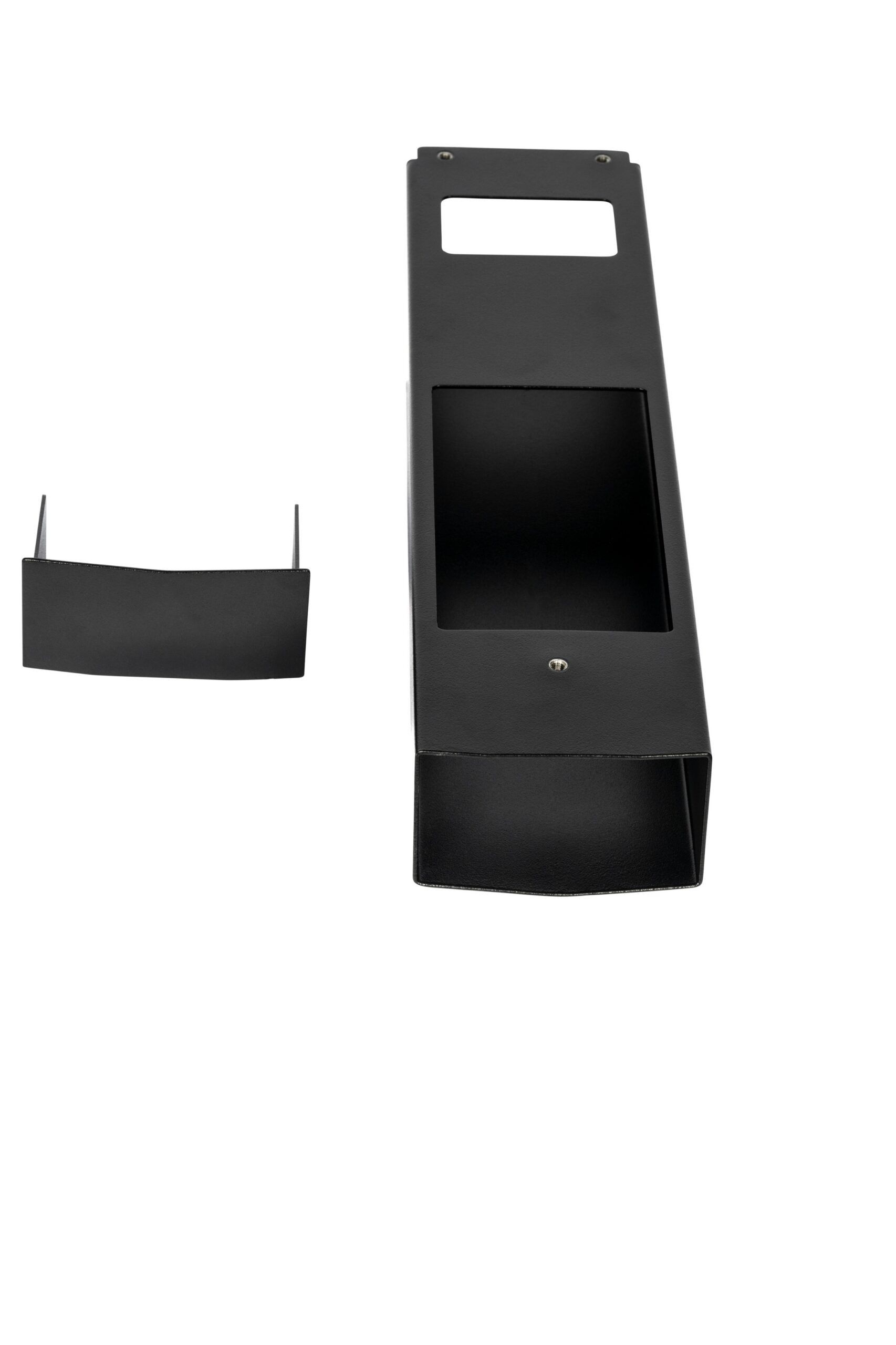

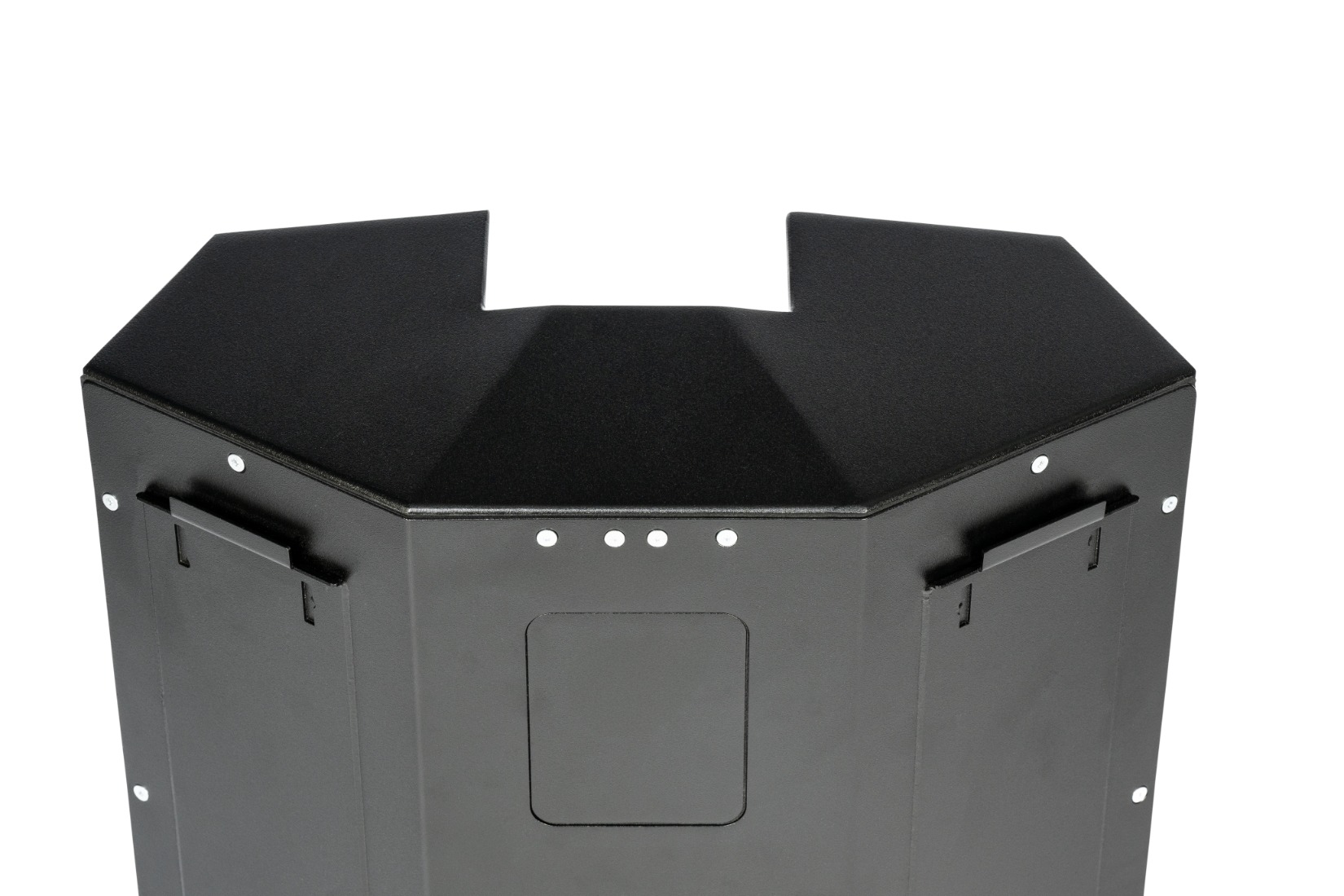

Mounting plate ENO duomount

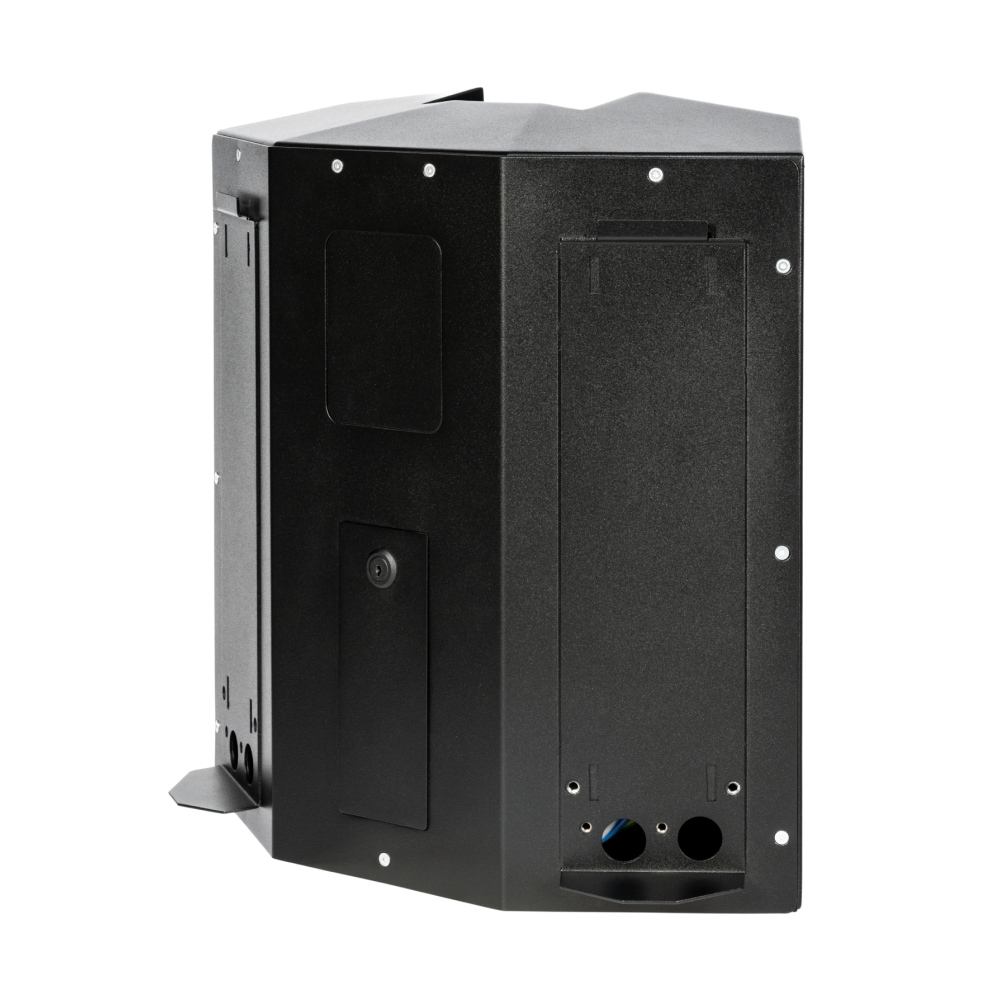

ENO duomount (RCBO’s incl.)

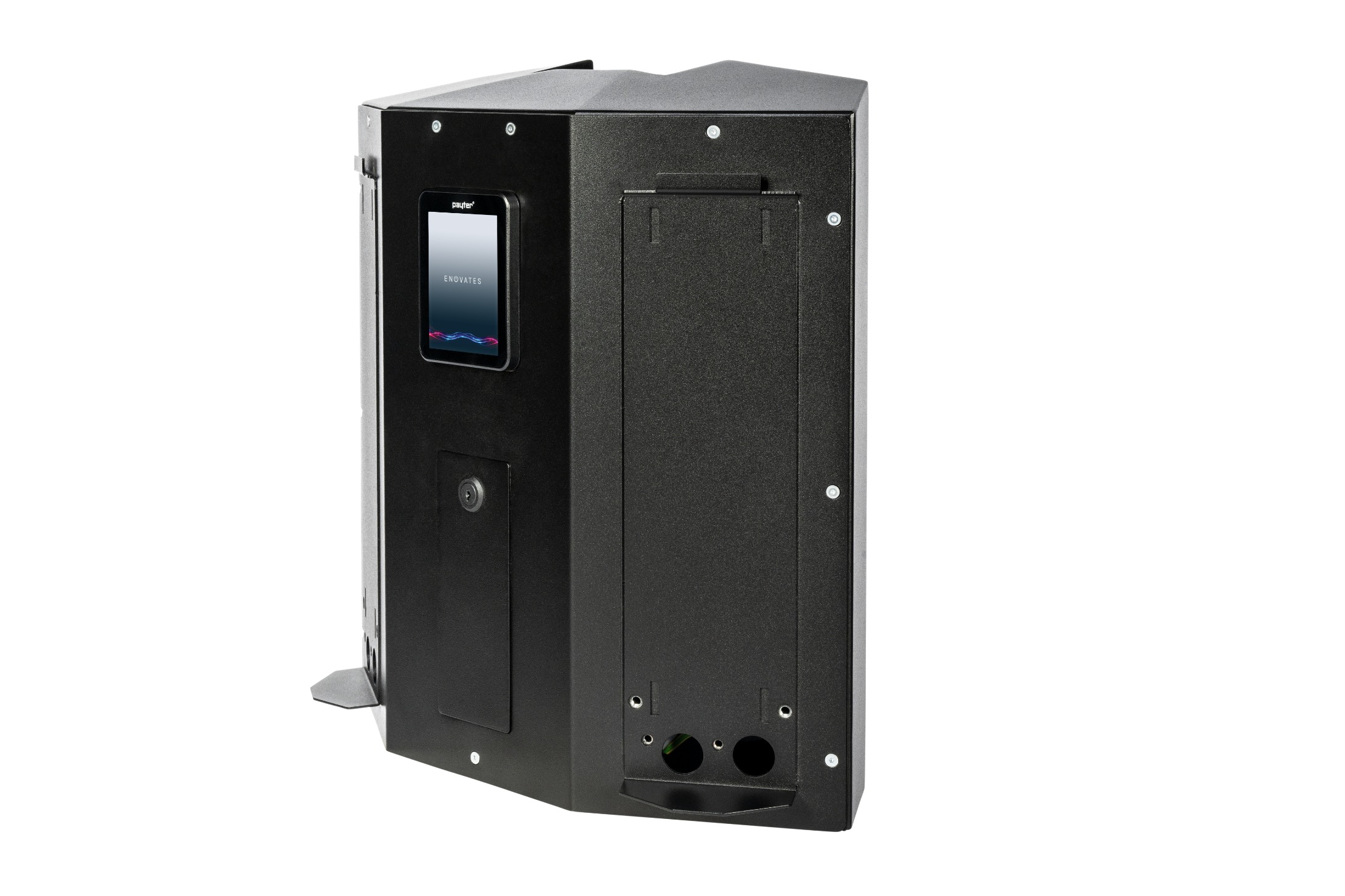

ENO duomount with payter (RCBO’s incl.)
Weight & dimensions

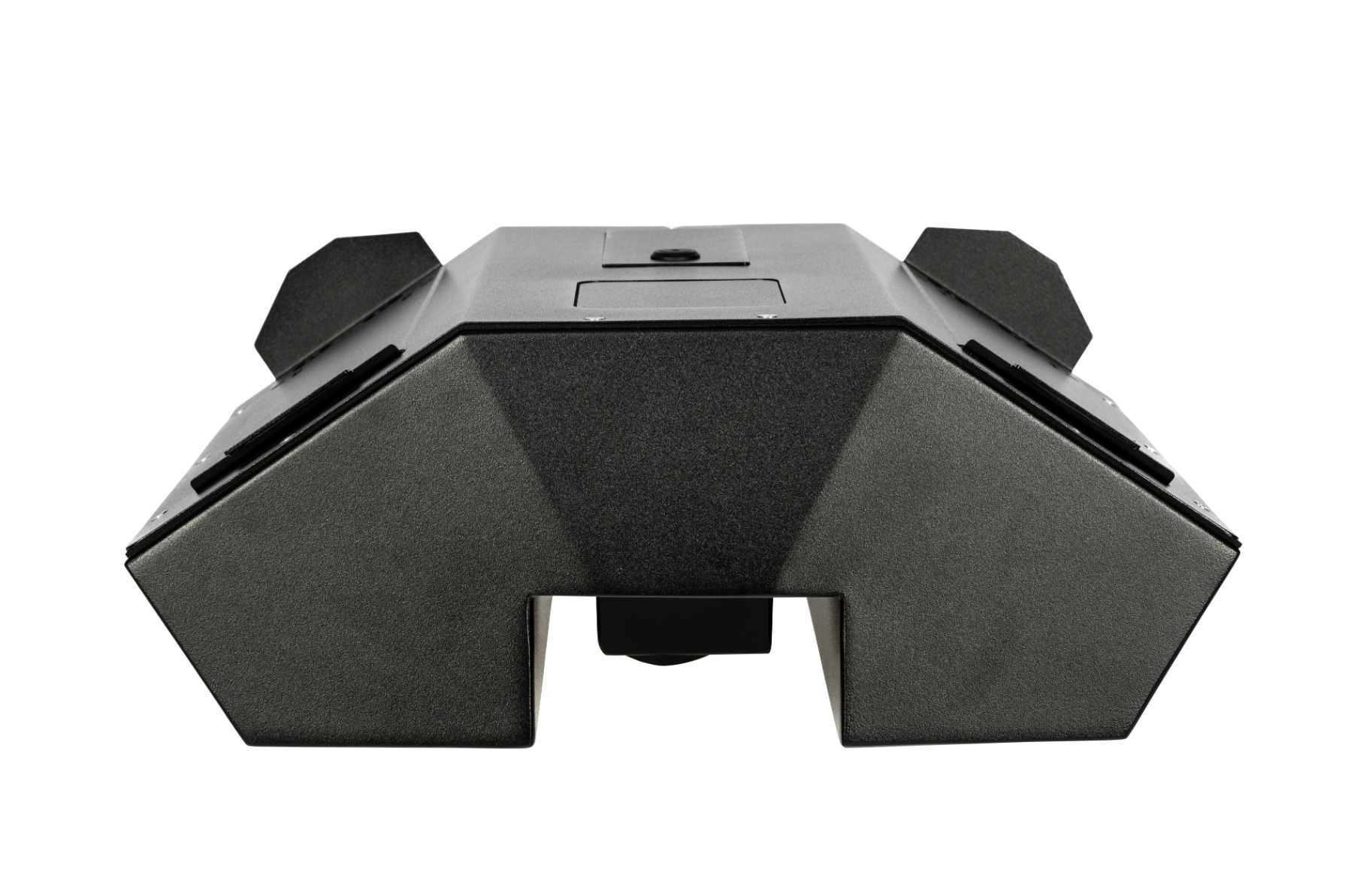

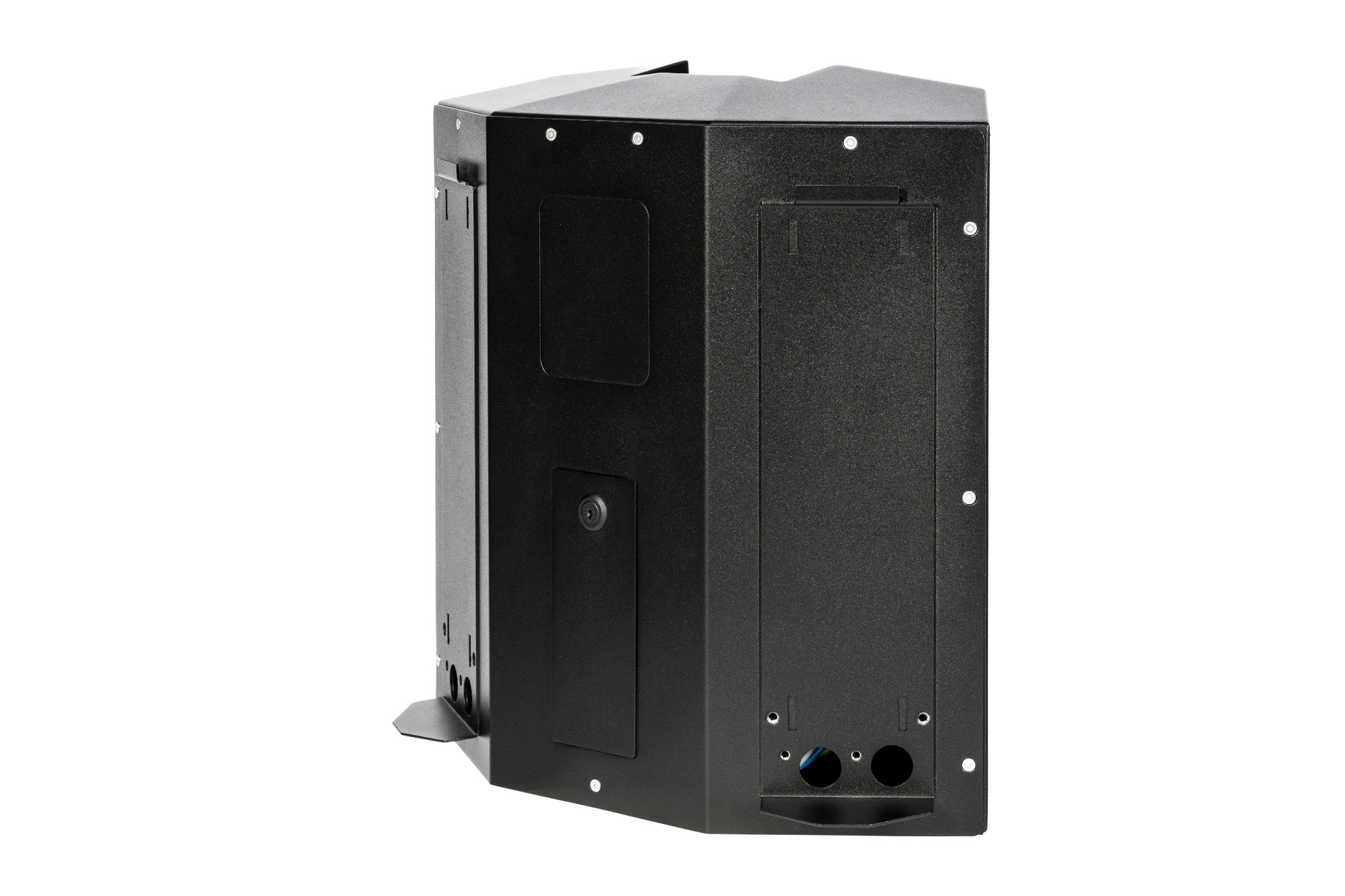

- Enclosure only: 8.0 kg — 435 × 162 × 465 mm
- With two ENO one’s mounted: 15.0–18.2 kg depending on configuration — 575 × 245 × 465 mm (incl. socket)
